Daiwa

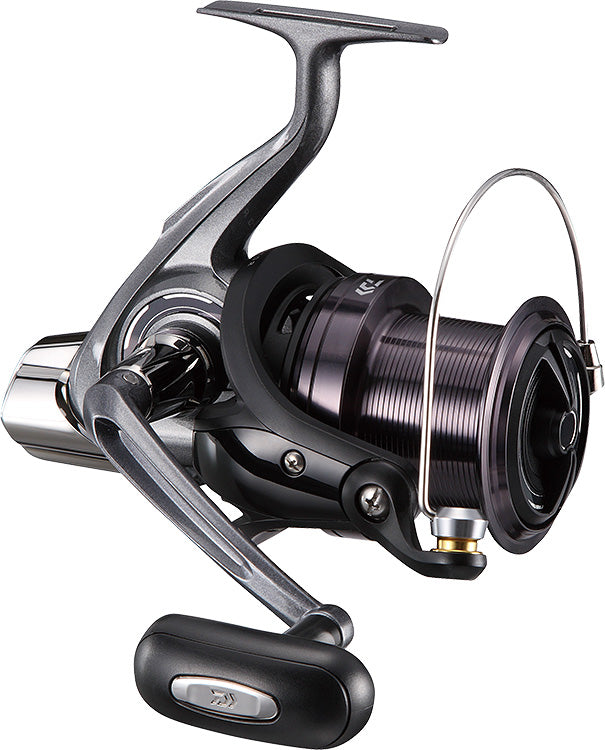

Daiwa - 17 CROSSCAST 5000

$12410

Specifications

Max Drag | 15kg

Gear Ratio | 4.1

Line Retrieve | 82cm

Reel Weight | 640g

Line Capacity | 7-250, 8-200, 10-150

Features

  • AIR ROTOR
  • DIGIGEAR II
  • CROSSWRAP
  • TWISTBUSTER II

Designed for anglers who prioritize casting distance, this entry-level model features a 35mm stroke, ensuring optimal performance when casting to cages and rocky shores. The Air Rotor enhances rotation smoothness and winding efficiency, making long-distance casting effortless.

Built with high-end features, this model includes Cross Wrap technology to minimize line trouble and Digigear II, a highly durable gear system that can handle large fish without compromise.

Daiwa Technology

  • AIR ROTOR
    A uniquely arched design that distributes load evenly, reducing weight while maintaining strength. Improved rotor balance results in a lighter, more responsive rotation.

  • DIGIGEAR / DIGIGEAR II
    A digitally optimized drive gear system that enhances strength and provides ultra-smooth rotation, achieving ideal reel performance.

  • CROSS WRAP
    A twill winding method with a large winding angle prevents line issues such as tangling in the spool or slipping out of place. Particularly effective for thin threads and PE lines, ensuring smooth, trouble-free casts.

  • TWIST BUSTER II
    A tapered line roller that counteracts twisting caused by rotor movement, significantly reducing line twist—a common issue with spinning reels.

Features & Specifications

Feature Description
DS4 (Body & Rotor Material) A special fiber-reinforced plastic developed by Daiwa for enhanced durability and lightweight performance.
Foldable Handle Convenient foldable handle for easy portability.
Shower Washable Can be rinsed under running water for easy cleaning. (Post-wash maintenance required as per the instruction manual.)
Cast Rock Manual Return Locks rotor rotation when the bail is open during casting to prevent accidental closure. The bail must be manually reset for safety.
Infinite Stopper A friction-based stopper that prevents reverse reel rotation, ensuring a firm, play-free feel for smooth operation.
Thread Drop Prevention Mechanism A sliding line guard prevents the line from slipping off the spool and getting caught between the spool and rotor.



Item Standard Weight (g) Winding Length (cm/1 Turn of Handle) Gear Ratio Standard Winding Amount of Nylon (No.-m) Handle Arm Length (mm) Bearings (Ball/Roller) Maximum Drag Force (kg) Veil Return Body Material
17 Crosscast 5000 640 82 4.1 7-250_8-200_10-150 85 3/1 15 Manual DS4
17 Crosscast 5500 635 82 4.1 8-250_10-200_12-170 85 3/1 15 Manual DS4
17 Crosscast 6000 630 82 4.1 10-250_12-200_16-170 85 3/1 15 Manual DS4

Note: Manufacturer's suggested retail price excludes tax.
