Shimano - 20 OCEA JIGGER 4000

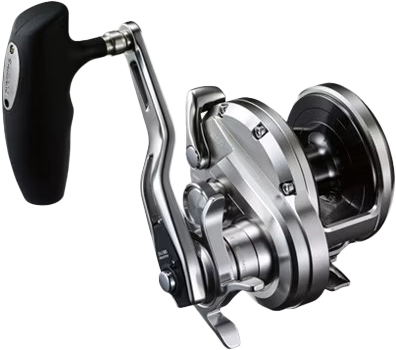

Shimano Ocea Jigger 4000

Designed for taming the deep, the Shimano Ocea Jigger 4000 is built to go head-to-head with New Zealand's most powerful offshore species. With a compact body, oversized gearing, and serious line capacity (PE3 × 1200m), it’s the go-to for anglers targeting hapuku, bass, bluenose, kingfish, and big snapper in deep water.

Whether you're slow-pitch jigging in 100m or dropping rigs down past 300m, this reel delivers the torque, smoothness, and reliability needed for the job.

---

Key Features & Shimano Technologies

HAGANE Body & Gear
Cold-forged from high-strength materials for unmatched rigidity and durability, allowing you to crank under heavy load without flex or power loss.

Micromodule Gear
Precision-cut micro teeth reduce vibration and create ultra-smooth, quiet reeling — especially noticeable during jigging and slow retrievals.

Infinity Drive
Reduces friction between the pinion and spool shaft, giving you lighter, easier handle rotation even when hauling up big fish from depth.

X-Protect
Advanced water-repelling design using a labyrinth seal and water-blocking grease that protects internal components from saltwater intrusion without sacrificing smoothness.

S-Compact Body
Compact palming side plate for better in-hand control and comfort, especially over long sessions.

Cross Carbon Drag
Shimano’s high-end drag material offers a smooth, consistent drag curve with the heat resistance and durability needed for long battles.

Exciting Drag Sound
Audible drag clicker enhances the fight and lets you know instantly when the fish is making a move.

S A-RB Bearings
Shielded anti-rust bearings resist saltwater corrosion and offer long-lasting smooth operation in harsh environments.

Cold-Forged Long Crank Handle
Strong, rigid handle arm allows direct and powerful winding without flex, giving you full torque transfer during heavy lifts.

Cold-Forged High Rigidity Clutch Lever
Built to handle repeated use, offering crisp clutch engagement and durability in salt-heavy conditions.

Large-Diameter Drive Gear
Forged from ultra-high-strength brass to deliver incredible power and durability without excess bulk.

Special Surface-Treated Pinion Gear
Enhanced corrosion resistance from a specialized surface finish extends lifespan in saltwater use.

Stainless Steel Internal Parts
Essential for deepwater reels — the internals are reinforced with stainless components for strength and corrosion resistance.

Large Diameter Star Drag
Allows for finer adjustments to your drag setting, especially helpful when fine-tuning for species like kingfish and bluenose.

Spool Lock Mechanism
Mechanically locks the spool to prevent reverse rotation — perfect when breaking off snags in deep structure.

High-Strength, Waterproof Roller Clutch
11× stronger than previous models and protected with waterproof sealing for smooth and reliable hooksets.

Clutch Auto-Return
The lever automatically re-engages after casting or dropping, allowing fast reaction time when a fish hits.

---

This reel is a weapon for deep water specialists — whether you're chasing bluenose off the East Coast, hapuku and bass at the Three Kings, or kingfish in deep pins off White Island, the Ocea Jigger 4000s built to perform.

Model	Gear Ratio	Max Drag (kg)	Weight (g)	Spool Dia/Width (mm)	PE Line Capacity	Max Winding (cm/turn)	Handle Length (mm)	Bearings	Knob Type	Handle Type
4000 RIGHT	4.4	18	785	73/33.4	3-1200, 4-900, 5-700, 6-580	101	110/98	6/1	D	BH-2, 4, 5, 6*
